空調電容常用的電容型號和與之匹配的容量
作者:紅寶電容 來源:http://www.dsbb.net.cn 日期:2020-09-04 09:04 瀏覽

  空調品牌不同所用電容也不同,一般長虹和格力空調是用的35uF的。格蘭仕空調用30uF的。

  Different brands of air conditioners use different capacitors. Changhong and Gree air conditioners use 35uf. Glanz air conditioner uses 30uf.

  空調選用電容容量一般是多少?

  What is the capacitance of air conditioner?

  ◆ 1匹空調大概要配置25-30UF的電容.

     One air conditioner should be equipped with 25-30uf capacitor

  ◆ 1.5匹的空調一般是zhi30-35UF的電容

     A 1.5p air conditioner is usually the capacitance of zhi30-35uf

  ◆ 2匹的一般是50-60UF的電容

     A 2-piece capacitor is usually 50-60uf

  ◆ 3匹的一般是60-65UF 電容

     A 3-piece capacitor is usually 60-65uf

  空調電容有幾種型號:

  There are several types of air conditioner capacitors:

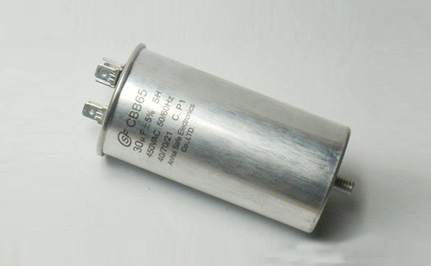

  空調啟動電容:用來啟動單相異步電動機的交流電解電容器或聚丙烯、聚酯電容器。

空調啟動電容

  Starting capacitor of air conditioner: AC electrolytic capacitor or polypropylene or polyester capacitor used to start single-phase asynchronous motor.

  電容感應式電機有兩個繞組,即啟動繞組和運行繞組。兩個繞組在空間上相差90度。在啟動繞組上串連了一個容量較大的電容器,當運行繞組和啟動繞組通過單相交流電時,由于電容器作用使啟動繞組中的電流在時間上比運行繞組的電流超前90度角,先到達最大值。

  Capacitor induction motor has two windings, namely starting winding and running winding. The two windings differ by 90 degrees in space. A capacitor with large capacity is connected in series on the starting winding. When the running winding and the starting winding pass through single-phase alternating current, the current in the starting winding is 90 degrees ahead of the current in the running winding due to the action of the capacitor, and reaches the maximum value first.

  在時間和空間上形成兩個相同的脈沖磁場,使定子與轉子之 間的氣隙中產生了一個旋轉磁場,在旋轉磁場的作用下,電機轉子中產生感應電流,電流與旋轉磁場相互作用產生電磁場轉矩,使電機旋轉起來。

  Two identical pulse magnetic fields are formed in time and space, which makes a rotating magnetic field in the air gap between the stator and the rotor. Under the action of the rotating magnetic field, the induction current is generated in the rotor of the motor, and the electromagnetic torque is generated by the interaction between the current and the rotating magnetic field, which makes the motor rotate.

  空調有幾個電容?

  How many capacitors does the air conditioner have?

  單相220V供電的分體空調,內外機里共有3只電容,柜機和掛機也是共有三個電容。三個電容分別是:內機的風機電容,外機的風機電容和外機的壓縮機電容,三個電容的作用都是運行電容。

  For the split air conditioner with single-phase 220 V power supply, there are three capacitors in the internal and external units, and there are also three capacitors in the cabinet unit and hanging unit. The three capacitors are: the fan capacitance of the internal unit, the fan capacitor of the external unit and the compressor capacitance of the external unit. The function of the three capacitors is the operating capacitance.

  而三相380V的空調,一般只有2電容,內外機各一個,都是風機運行電容,三相空調壓縮機是不需要電容。

  For the three-phase 380V air conditioner, there are only two capacitors, one for the internal and external units, which are all the operating capacitors of the fan. The compressor of the three-phase air conditioner does not need capacitance.

×
